Cage Description

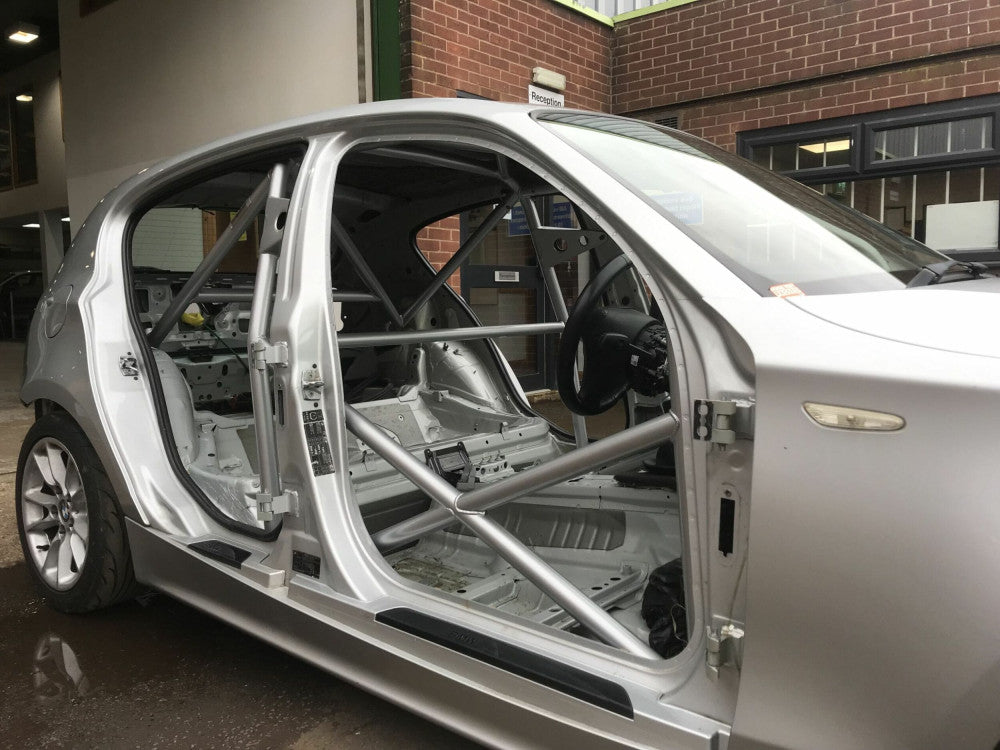

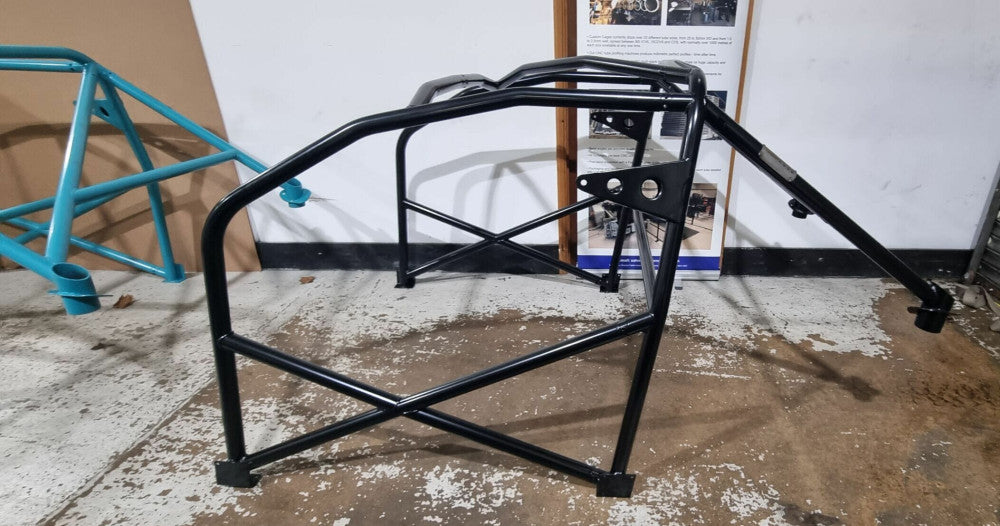

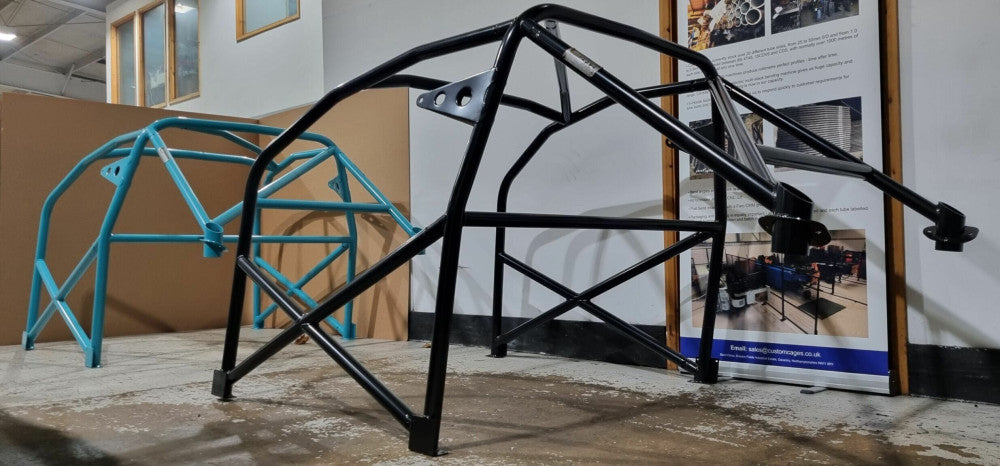

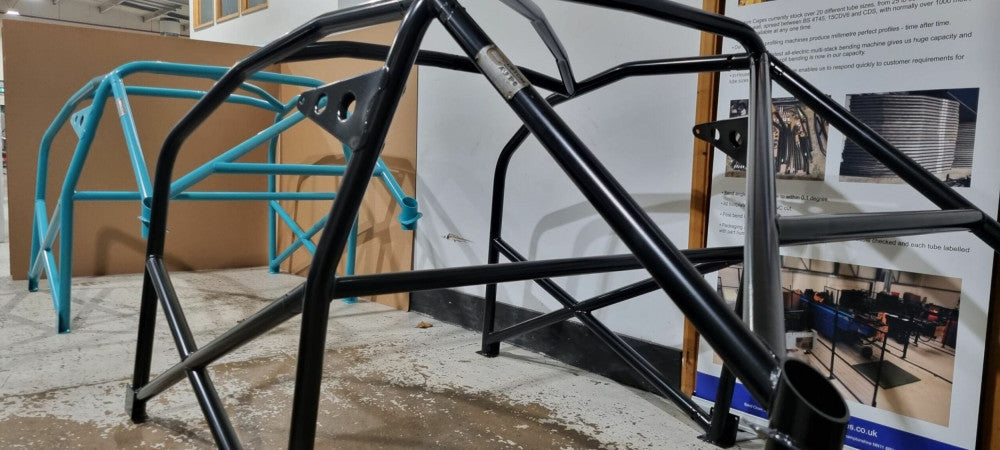

xStepping onto the 116 Trophy grid requires a car that is safe, compliant, and structurally sound. Our 6-Point Bolt-In CDS roll cage is the industry standard for this popular endurance series. Designed specifically for the BMW 1-Series (E87) 5-door, this cage provides the mandatory protection required for door-to-door racing while acting as a rigid structural brace for the chassis.
Built from high-tensile CDS is chosen for the 116 Trophy for its immense energy absorption, making it the ideal material for the rigors of multi-car endurance racing.
Engineered to maximize cabin volume and driver ergonomics. The main hoop and lateral bars are profiled to sit flush against the B-pillars, ensuring clear sightlines and ample room for the mandatory racing seats and harnesses. All tubes are CNC Mandrel bent and laser-profiled for a perfect fit.

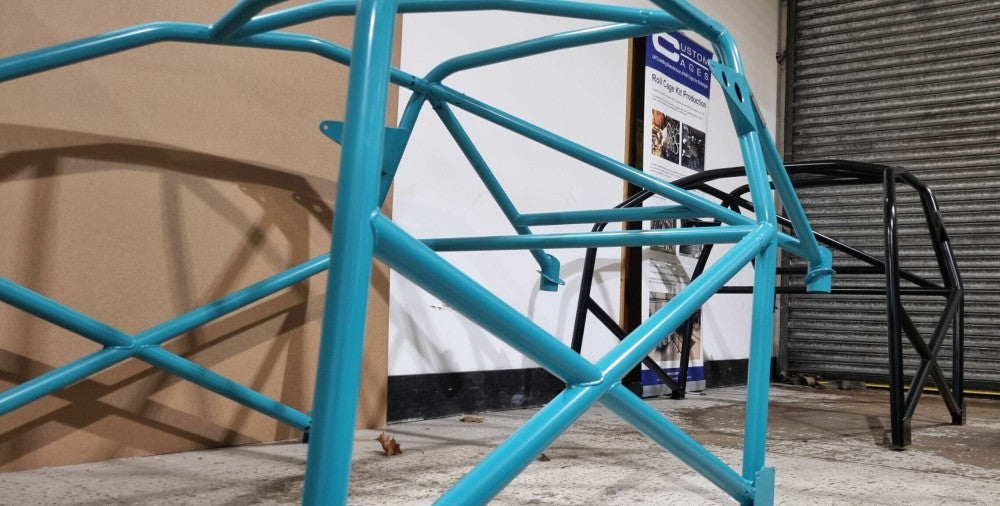

While all kits are supplied in a bare metal finish as standard, we offer a bespoke powder coating service. Custom coating starts from £150 +VAT, with final pricing tailored to your chosen finish. To ensure a perfect match, please provide your required RAL code in the order notes; our team will confirm the final specification and any applicable surcharges before processing.
**(Powder coating will add an additional 3-5 business days to the original quote)**
Cage Information
xBolt In
Key Features of the Bolt-in Roll Cage Kit:
- Quick Installation:
- These kits offer a convenient way to install a roll cage in a car, especially compared to weld-in kits.
- Installation is simplified as it mostly requires bolting, with welding needed only for the footplates.
- Strength and Lightness:
- Using our FIA Certified Lap-Joints: These lap joints are a key feature, offering stronger and lighter performance compared to traditional fixings. Their design also makes them nearly invisible once the cage is painted.
- Footplate Design:
- Traditional footplate boxes are not used due to their unacceptability in international events, replaced with underfloor doubler plates, which are more robust and secure.
- OEM Mounting Points:
- Some of our bolt-in designs utilise OEM mounting points in the body shell. This method is not suitable for MSUK or FIA-sanctioned events — please contact the technical sales team for further details.
- Fixing Points:
- Depending on the car’s category and model, there are up to 14 fixing points.
- High-Quality Fasteners:
- The kit uses high tensile 12.9 grade fixings, which are strong, durable, and included with the kit.
- Coating Options:
- The kit can be supplied either with a powder-coated finish for extra durability and aesthetics, or in plain steel, which can be customized by the installer.
Roll Cage Certification
xA roll cage design must comply with the MSA/FIA technical regulations published in the MS UK Blue book. It is the competitor’s responsibility to ensure his/her roll cage complies with the technical regulations appropriate to the event they are competing in.
For more information on the Certification processes, please find our Certification Guide for more details.
Roll Cage Kit Contents
x
Your Roll Cage arrives checked and packed ready to install.
- CNC laser-cut and end-formed tubes
- Footplates & gussets, laser cut and folded
- Weld test sample included – see our Certification Video Guide for more details
- Buildmaster included — every Roll Cage part has a unique sticker ID to help locate the correct part; this is used during checking and packing and is signed off twice
- Important documents – declaration forms and fitting guides included
- Unique ID plaque – do not lose this; the ID plaques are unique to each individual cage kit and must be welded to the cage during installation
- Installed images are available on request
Specification
x| Brand | BMW |
| Model(s) | 1 Series |
