£2,495.00
£2,495.00
SKU: WE/01

Make: Westfield

Model: Westfield

Cage Type: FIA Certificated and Bolt-In

All prices are ex VAT (calculated at checkout)

Shipping Policy

Info on shipping on orders across the UK & Europe

Returns & Refunds

Click here to learn more about our refund and return policy.
Westfield T45 FIA Certificated Roll Cage

Westfield T45 FIA Certificated Roll Cage

£2,495.00
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage
Westfield T45 FIA Certificated Roll Cage

Westfield T45 FIA Certificated Roll Cage

£2,495.00
Roll Cage Package: Roll Cage Kit
Powder Coating: Bare Metal Finish
Description
Description
x

Westfield Wide Body to the latest 2025 FIA regulations

As any owner will tell you the driving experience, responsiveness, feel and exhilaration a westfield gives you is un matched.

Open wheel, exposed driving….smiles for miles.

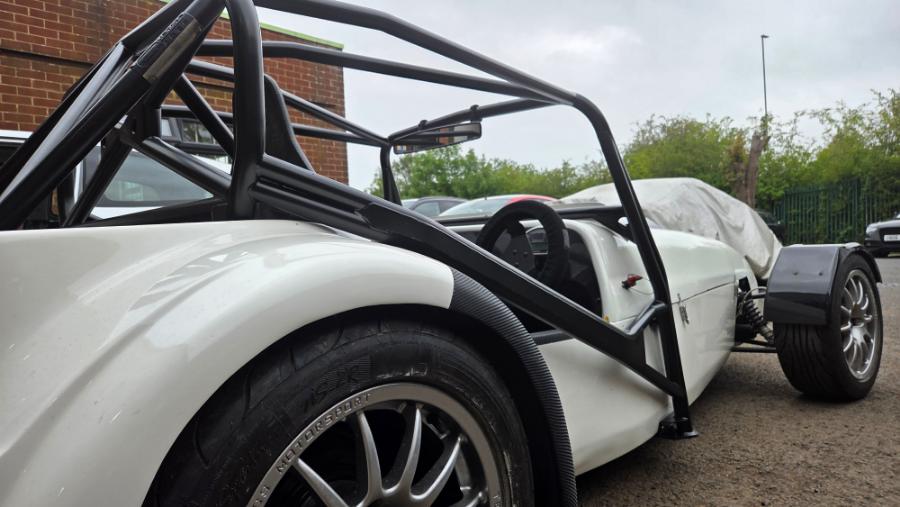

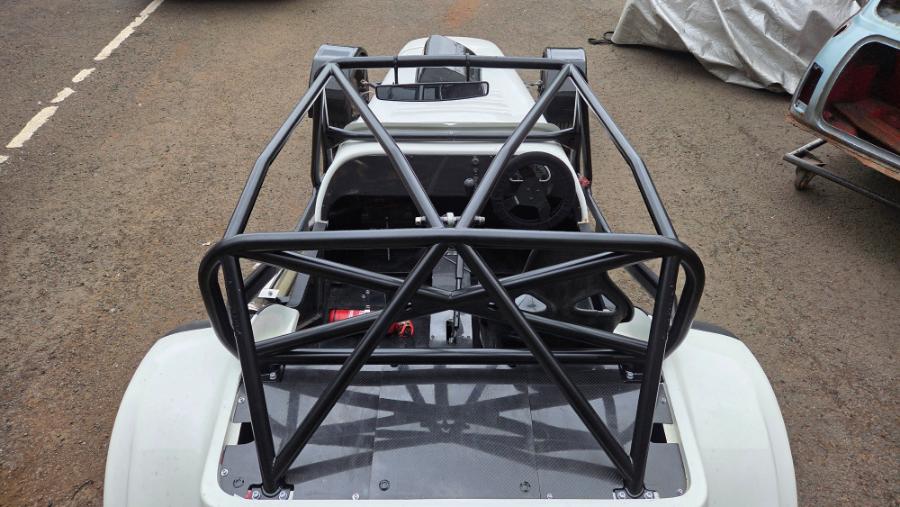

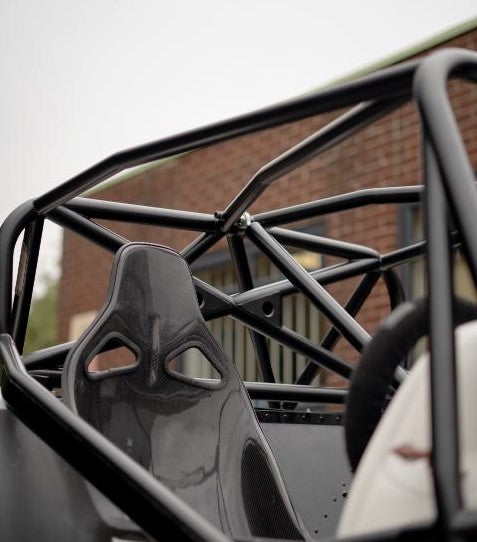

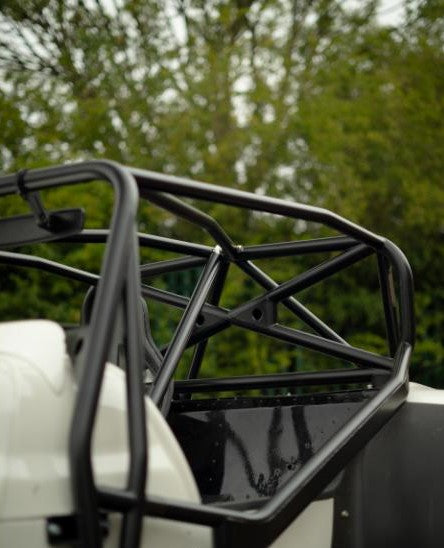

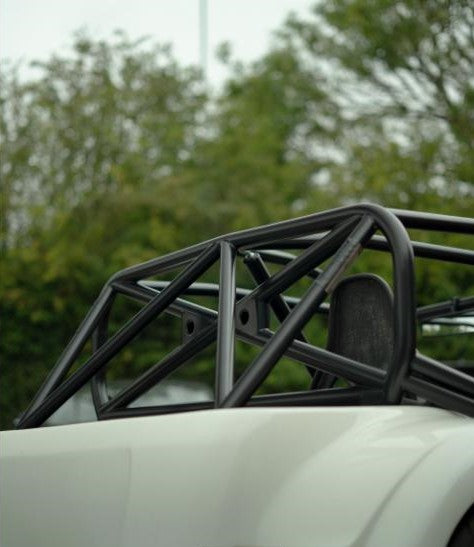

This all needs to be matched with safety! We have developed a T45 FIA Bolt In Roll Cage

Using FEA testing to optimise both weight and structural integrity to include side load testing for increased driver safety, increased side impact protection with double door bars. Traditional Roll Cages mount to the top chassis rail where this model mounts to the lower chassis rail providing increased lower leg protection. We also developed an optional rear cross for the rear stay mounts giving increased strength spanning the gap between the upper and lower chassis to the rear and a demountable single occupant petty bar for increased roll over protection.

One of the lightest Westfield Roll Cages to the latest regulations on the market.

Sub 30kg as a standard FIA Roll Cage

34kg with all options

This Roll Cage is eligible for UK and international FIA sanctioned events aswell as trackdays, sprints Hill Climbs and a myriad of other events

  • FEA Tested and optimised
  • FIA Certificate

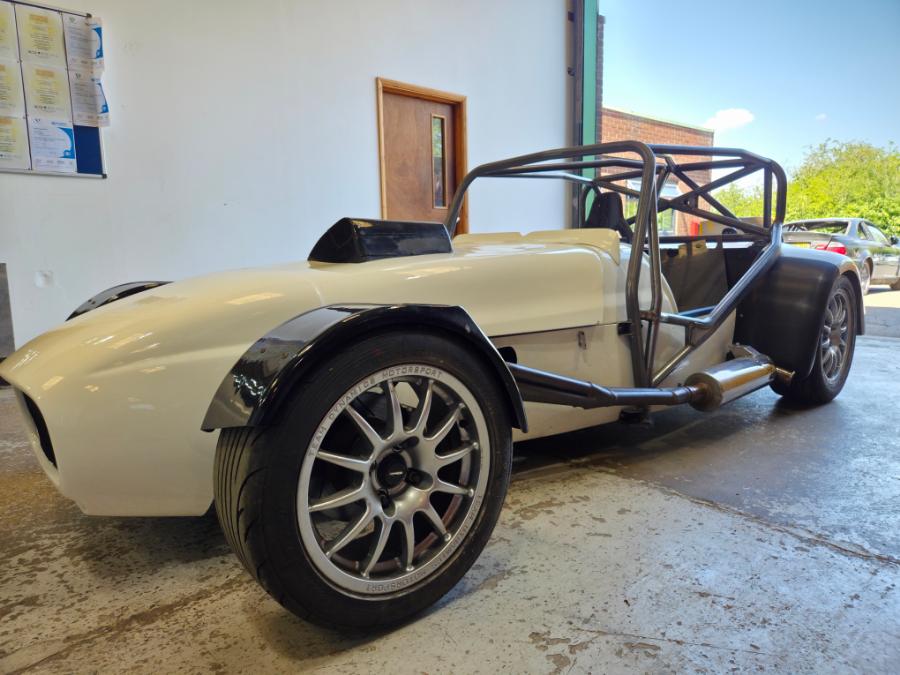

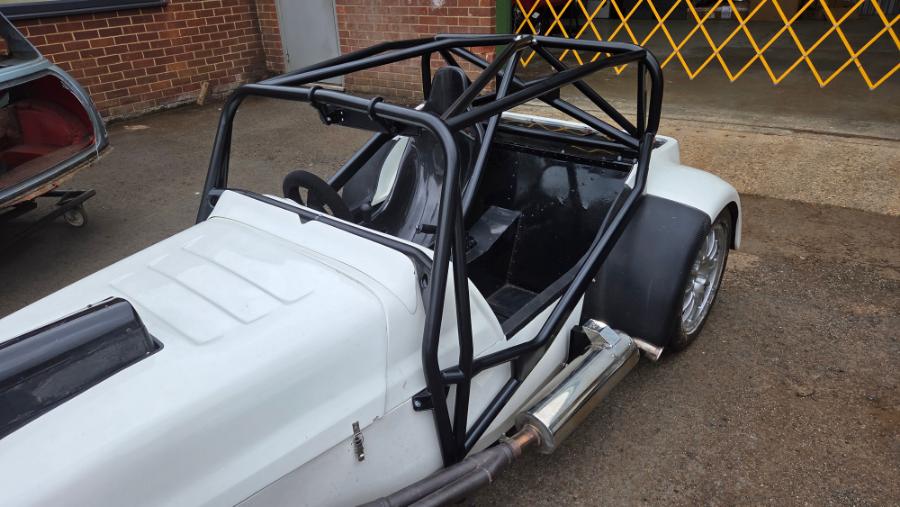

  • Double Door Bars
  • Lower chassis mount

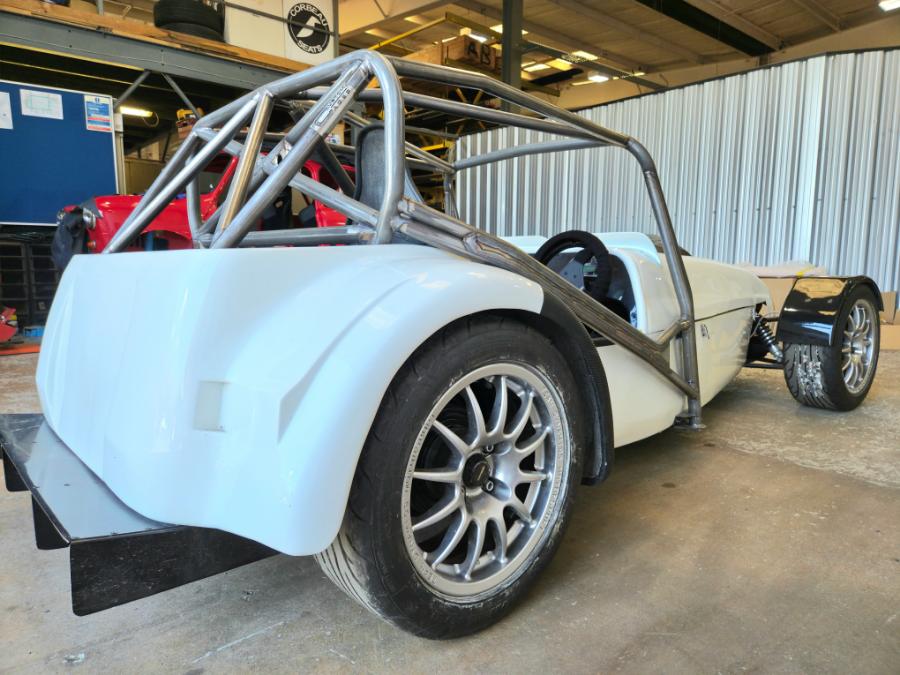

  • Optional lower cross

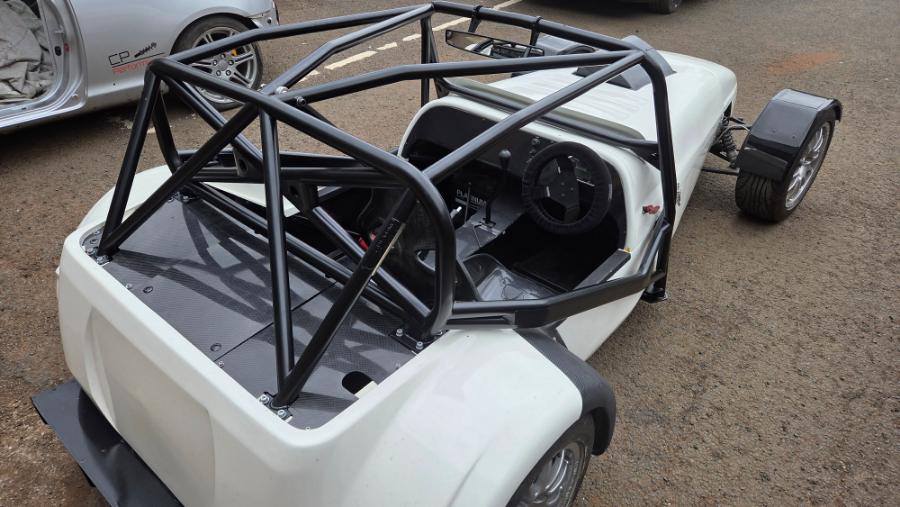

  • Optional Petty Bar
Developed with wind deflector, windscreen mounts may need to be modified
New side mirror mounts may be required for optimum position
Cage Information
Cage Information
x

FIA Certificated

Why Choose a Fully Certificated Roll Cage?

FIA Certificated roll cages offer a significant competitive edge over cages built to either MSUK or Minima FIA compliance standards. Engineered with high-performance materials and optimized geometry, they deliver maximum strength with minimal weight — often up to 20 kg lighter than minima-compliant designs, as they are often designed with smaller diameter and thinner gauge tube.

Key Features & Advantages

  • FIA Certificated Designs
    Built in accordance with the latest FIA roll cage homologation regulations. These designs are eligible for both UK and international events.
  • Superior Strength-to-Weight Ratio
    Constructed from high-tensile T45 tubing (minimum tensile strength: 700 MPa), allowing for smaller diameter and thinner wall thickness without compromising structural integrity.
  • Stress-Tested Engineering
    Each design is derived from a 3D scan, FEA tested to verify its integrity, stiffness, and optimal load paths. The FEA testing is completed by an independent FIA test house.
  • Weight Savings
    On certain models, you can see a weight saving of up to 20 kg lighter than equivalent minima roll cages — a crucial advantage in competitive motorsport.
  • Global Acceptance
    FIA certification ensures global recognition and eligibility for competition.
  • Increased Vehicle Value
    Professionally installed certificated cages can enhance resale value and marketability.

Bolt In

Key Features of the Bolt-in Roll Cage Kit:

  • Quick Installation:
    • These kits offer a convenient way to install a roll cage in a car, especially compared to weld-in kits.
    • Installation is simplified as it mostly requires bolting, with welding needed only for the footplates.
  • Strength and Lightness:

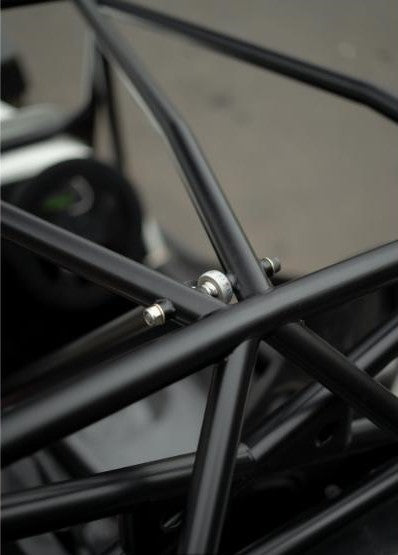

    • Using our FIA Certified Lap-Joints: These lap joints are a key feature, offering stronger and lighter performance compared to traditional fixings. Their design also makes them nearly invisible once the cage is painted.
  • Footplate Design:
    • Traditional footplate boxes are not used due to their unacceptability in international events, replaced with underfloor doubler plates, which are more robust and secure.
  • OEM Mounting Points:
    • Some of our bolt-in designs utilise OEM mounting points in the body shell. This method is not suitable for MSUK or FIA-sanctioned events — please contact the technical sales team for further details.
  • Fixing Points:
    • Depending on the car’s category and model, there are up to 14 fixing points.
  • High-Quality Fasteners:
    • The kit uses high tensile 12.9 grade fixings, which are strong, durable, and included with the kit.
  • Coating Options:
    • The kit can be supplied either with a powder-coated finish for extra durability and aesthetics, or in plain steel, which can be customized by the installer.
Certification
Certification
x

A roll cage design must comply with the MSA/FIA technical regulations published in the MS UK Blue book. It is the competitor’s responsibility to ensure his/her roll cage complies with the technical regulations appropriate to the event they are competing in.

For more information on the Certification processes, please find our Certification Guide for more details.

Kit Contents
Kit Contents
x

Your Roll Cage arrives checked and packed ready to install.

  • CNC laser-cut and end-formed tubes
  • Footplates & gussets, laser cut and folded
  • Weld test sample included – see our Certification Video Guide for more details
  • Buildmaster included — every Roll Cage part has a unique sticker ID to help locate the correct part; this is used during checking and packing and is signed off twice
  • Important documents – declaration forms and fitting guides included
  • Unique ID plaque – do not lose this; the ID plaques are unique to each individual cage kit and must be welded to the cage during installation
  • Installed images are available on request
Specifications
Specifications
x
Brand Westfield
Model(s) Westfield
