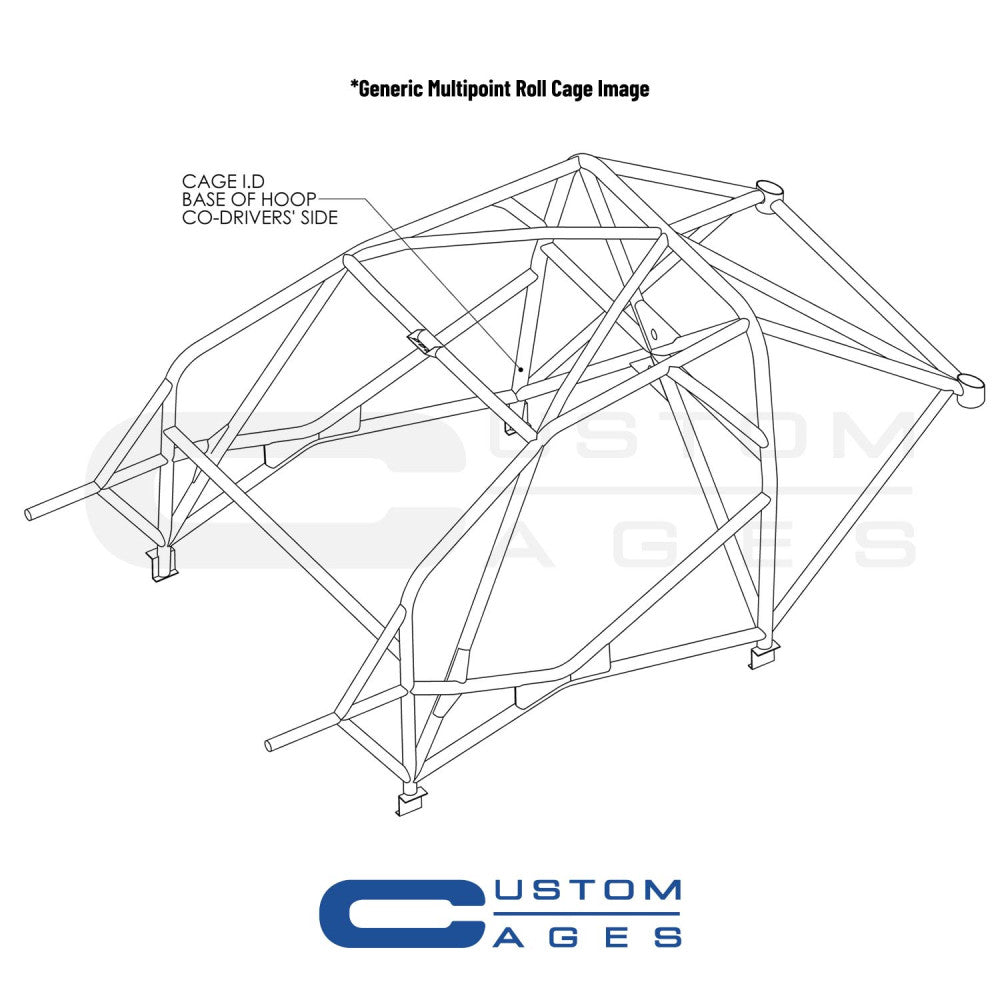

MG MG ZR International Multipoint T45 roll cage kit. FIA Certificated

FIA Certificated:

  • A certificated design is manufactured to meet the FIA / MSUK Roll Cage Homologation Regulations.
  • Usually, a ‘Multi-point’ design which adds stiffness and strength to the bodyshell.
  • These are almost always a ‘weld-in’ cage which is lighter and stiffer than a ‘bolt-in’ cage.
  • The designs are stress tested to prove their integrity and geometry, and tube sizes are optimised to give the best strength-to-weight ratio.
  • We always use high-tensile tube for these designs (normally T45, which has a tensile strength of min. 700 Mpa) to further enhance their advantages.
  • An FIA / MSUK certificated roll cage is accepted worldwide and enables competitors to run in any FIA-sanctioned event.
  • Can be as much as 20 kg lighter than an MSUK compliant design.
  • When correctly installed, they add value and saleability to a vehicle.
  • They are authorised in the UK by MSUK (the MSA as was), but the certificates are still referred to as FIA papers.
  • These regulations are constantly evolving, so new designs have to reflect these changes.

MSUK Compliant – See our ‘National’ range:

  • The roll cage will be made using the minimum MSUK prescribed tube sizes – thicker gauge than we would use in a certificated design, and, so (unfortunately) heavier.
  • Usually, these are manufactured from CDS (Cold Drawn Seamless) tube – ours is a high tensile material with a minimum tensile strength of 510 Mpa – although T45 can be specified at extra cost.

These cages are eligible for all MSUK events.

Multipoint (weld-in) roll cage: These have a minimum of 8 point attachments. Please note, HOWEVER – Because our roll cage will fit very closely to the body-shell it would be normal practice to weld the cage to the shell in at least an additional 8 or 10 places, (and sometimes many more) making a minimum of 16 points.

Weld-in roll cage kit: Our weld-in kits are supplied with all the parts you need to fit a roll cage. All the tubes are pre-cut and profiled to fit. They come complete with the footplates that get welded to the car, as well as all relevant gussets.

SKU: MGR25/03T Category:

MG ZR Roll Cage Variants

  • MG MG ZR International Multipoint T45 roll cage kit. FIA Certificated

Cage information

FIA Certificated:

  • A certificated design is manufactured to meet the FIA / MSUK Roll Cage Homologation Regulations.
  • Usually, a ‘Multi-point’ design which adds stiffness and strength to the bodyshell.
  • These are almost always a ‘weld-in’ cage which is lighter and stiffer than a ‘bolt-in’ cage.
  • The designs are stress tested to prove their integrity and geometry, and tube sizes are optimised to give the best strength-to-weight ratio.
  • We always use high-tensile tube for these designs (normally T45, which has a tensile strength of min. 700 Mpa) to further enhance their advantages.
  • An FIA / MSUK certificated roll cage is accepted worldwide and enables competitors to run in any FIA-sanctioned event.
  • Can be as much as 20 kg lighter than an MSUK compliant design.
  • When correctly installed, they add value and saleability to a vehicle.
  • They are authorised in the UK by MSUK (the MSA as was), but the certificates are still referred to as FIA papers.
  • These regulations are constantly evolving, so new designs have to reflect these changes.

MSUK Compliant – See our ‘National’ range:

  • The roll cage will be made using the minimum MSUK prescribed tube sizes – thicker gauge than we would use in a certificated design, and, so (unfortunately) heavier.
  • Usually, these are manufactured from CDS (Cold Drawn Seamless) tube – ours is a high tensile material with a minimum tensile strength of 510 Mpa – although T45 can be specified at extra cost.

These cages are eligible for all MSUK events.

Additional information

Cage Options

,

Cage Type

, ,

Suitable For:

, , , , ,

Fitting

Car Model

Roll Cage Kit Contents

Your roll cage arrives shrink-wrapped in durable black plastic. And by the way, it is very heavy!

Inside you will find:

  • CNC formed tubes for the main hoop, A pillar hoops etc with square and profiled ends are necessary.
  • Straight tubes with profiled ends ready for welding into place.
  • Set of footplates.
  • Check list (every tube has an identifying sticker) so you can be sure you have a complete kit (we will have already have checked that you have the right tubes twice before the kit is packed).
  • Instructions sheet.
  • CD showing the fully fitted roll cage.

Roll Cage Certification

To compete in any race or rally your roll cage will need to comply with either MSA or FIA regulations. (Effectively, the MSA is governed by the FIA so if a roll cage design complies with FIA regs, then it is also eligible for MSA events). There are some instances where the FIA allows certain design features where the MSA do not (and vice versa).

A roll cage design must comply with the MSA/FIA technical regulations published in the MSA Blue book. It is the competitor’s responsibility to ensure his/her roll cage complies with the technical regulations appropriate to the event they are competing in.

The certification process generally allows for a lighter roll cage because it is a bespoke design where the diameter and thickness of each tube is optimised to achieve the overall strength required by the FIA/MSA rules.

In order to compete in MSA/FIA events every vehicle, which has a certificated design of roll cage, should have a copy of a valid certificate to present at scrutineering. Custom Cages has certified the majority of popular roll cages. All other roll cages comply with MSA/FIA regulations and receive a Letter of Conformity for competitors to present to scrutineers.

To obtain a certificate for a self-fit roll cage, the installer must complete a Custom Cages weld test.

Custom Cages’ roll cage kits include a weld test sample. Once completed these are returned to the company for load testing. They are subjected to a physical test to assess the actual yield strength of the weld. This ensures that the self-fit roll cages achieve the highest standards of integrity.

Additional samples may be requested.

Certificates will only be issued on completion of a successful test.

Please be aware that there is a charge of £60.00 + VAT for all MSA/FIA Certificates
